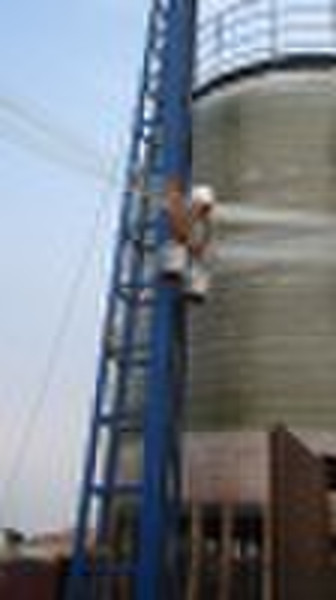

FRP winding machine

Performance Characteristics: Vertical Winding Machine of FRP tankEquipment No Item Name FWLS-10000 FWLS-15000 Pipe diameter,IDmm Φ3000-Φ10000 Φ4000-Φ15000 Product height,mm ≤8000 ≤9000 Winding angle,º 6590 6590 Max weight of product,kg 32000 45000 Rotating speed of main shaft ,r/min ≤18 ≤12 Transmission method Pinion and rack Pinion and rack Control method manualsemi automaticautomatic manualsemi automaticautomatic Coordinate speed of vehicle,m/min 45 45 Precision of lining up yarn ,mm ±1 ±1 Repositioning accuracy ,mm 0.2 0.2 Max speed of pulling yarn ,m/min 90 90 Max width of yarn tape ,mm 200 200 Winding type Reciprocating cross, hoop direction Reciprocating cross, hoop direction Winding roving capacity,each 80 80 Resin type Unsaturated polyester, vinyl ester, etc. Unsaturated polyester, vinyl ester Yarn framea kind of inner pulling yarn Tension adjustable yarn frame of mechanical type Tension adjustable yarn frame of mechanical type Impregnation groove,stainless steel Roller impregnation or immersion impregnation Roller impregnation or immersion impregnation Production capacity ,kg/h 2000 2000 Total installed capacity , kw 15 18 Areas covered by production linelength × width × heightm 10×12×10 15×18×11 Series vertical winding machine of FRP vessel of FWLS type is mainly used to produce and manufacture the FRP vertical winding molded vessels as well as the related winding molded products, such as FRP storage tank, fermentation tank, large FRP tower, large FRP chimney, FRP desulphurization equipment,large corrosion-resistant tank and etc. This production line is characterized by the high precision of winding line, high productivity, low energy-consumption, easy installation, adjustment and maintenance. It adopts the industrial computer control, so the usage and operation are very convenient. Option Collocation Resin pre-accelerated agitator tank Pneumatic glass fiber chopped spray gun Adjustable resin pump Adjustable catalyst flowmeter
