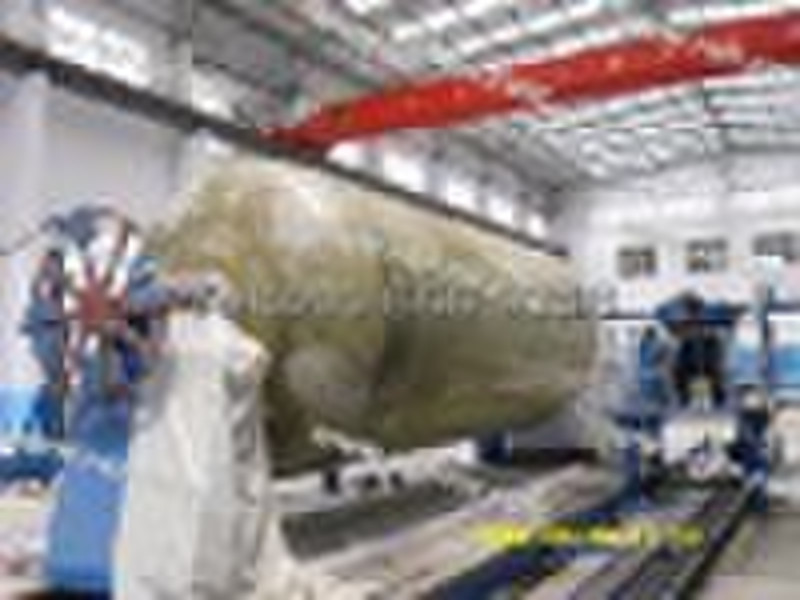

Horizontal Winding Machine of FRP Vessels

Performance Characteristics: Series horizontal winding machine of FRP vessel of FWRQ type is mainly used to produce and manufacture the FRP horizontal winding molded vessels as well as the related winding molded products, such as FRP storage tank, fermentation tank, integral septic tank,large FRP chimney, FRP transportation tank, FRP tank for water treatment and etc. This production line is characterized by the high precision of winding line, high productivity, low energy-consuming, easy installation, adjustment and maintenance. It adopts the industrial computer control, so the usage and operation are very convenient. Horizontal Winding Machine of FRP Vessel Equipment No Item Name FWRQ-2500 FWRQ-4000 FWRQ-10000 Pipe diameter,IDmm Φ500-Φ2500 Φ800-Φ4000 Φ4000-Φ10000 Product length,mm ≤12000 ≤12000 ≤12000 Winding angle 45 º90 º 45 º90 º 45 º90 º Max weight of product ,kg 8500 12000 28000 Rotating speed of main shaft ,r/min ≤45 ≤35 ≤18 Transmission method Pinion and rack Pinion and rack Pinion and rack Control method manualsemi automaticautomatic manualsemi automaticautomatic manualsemi automaticautomatic Coordinate speed of vehicle ,m/min 45 45 45 Precision of lining up yarn ,mm ±1 ±1 ±1 Repositioning accuracy ,mm 0.2 0.2 0.2 Max speed of pulling yarn ,m/min 90 90 90 Max width of yarn tape ,mm 200 200 200 Winding type Reciprocating cross, hoop direction Reciprocating cross, hoop direction Reciprocating cross, hoop direction Winding roving capacity,each 60 60 80 Resin type Unsaturated polyester, vinyl ester, etc. Unsaturated polyester, vinyl ester, etc. Unsaturated polyester, vinyl ester, etc. Yarn framea kind of inner pulling yarn Tension adjustable yarn frame of mechanical type Tension adjustable yarn frame of mechanical type Tension adjustable yarn frame of mechanical type Impregnation groove,stainless steel Roller impregnation or immersion impregnation Roller impregnation or immersion impregnation Roller impregnation or immersion impregnation Production capacity ,kg/h 800 1200 2000 Total installed capacity , kw 10.5 12.5 18.5 Areas covered by production linelength × width × heightm 18×9×2.5 18×9×3 20×15×7Option Collocation Resin pre-accelerated agitator tank Pneumatic glass fiber chopped spray gun Adjustable resin pump Adjustable catalyst flowmeter
